Sun 20" GDM-20E20 Sony Trinitron DB13W3 1600x1200 CRT Monitor - For Parts or Repair
Saved on this device. See your saved CRTs
Ask a question about this unit
Prefer eBay? This unit is also listed there →- Sold as-is for parts or repair
- Pickup details are sent after purchase. 3rd-party couriers (uShip, Craters & Freighters) welcome.
- Local pickup sales are final, including pickups by a 3rd-party courier.
- Questions? contact@analogattic.tv
Description

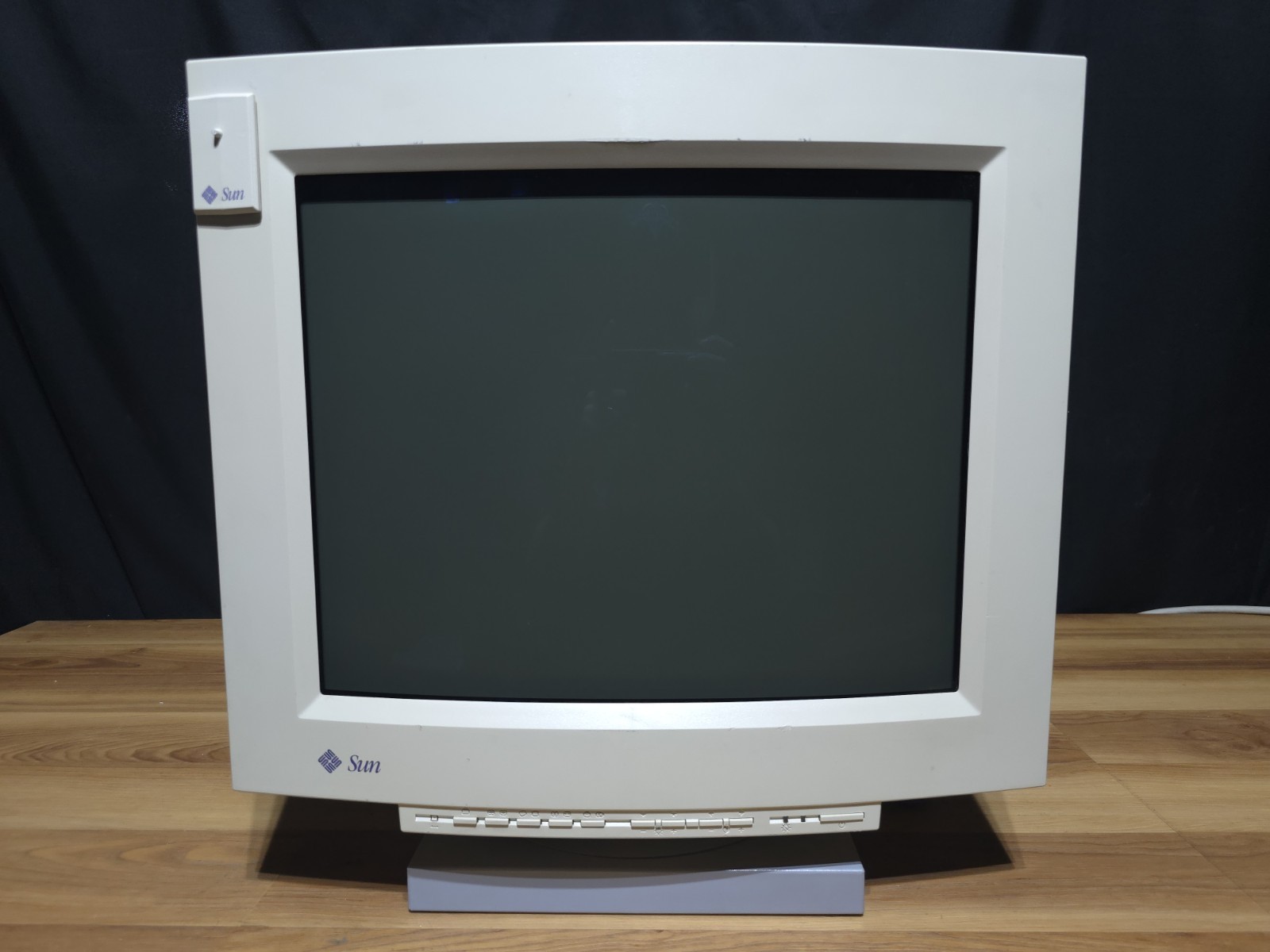

The Sun GDM-20E20 is a professional 20-inch CRT monitor featuring a Sony Trinitron picture tube with an 18.3-inch viewable screen. Equipped with a DB13W3 video connection and support for high-resolution displays, it's an excellent candidate for vintage Sun workstations, retro computing projects, and collectors of professional CRT monitors.
You will need a DB13W3 to VGA adapter to connect it to VGA.
Specifications
- Brand:
- Sun Microsystems
- Manufacturer:
- Sony
- Model:
- GDM-20E20
- Screen Size:
- 20" (18.3" viewable)
- Tube:
- Sony Trinitron

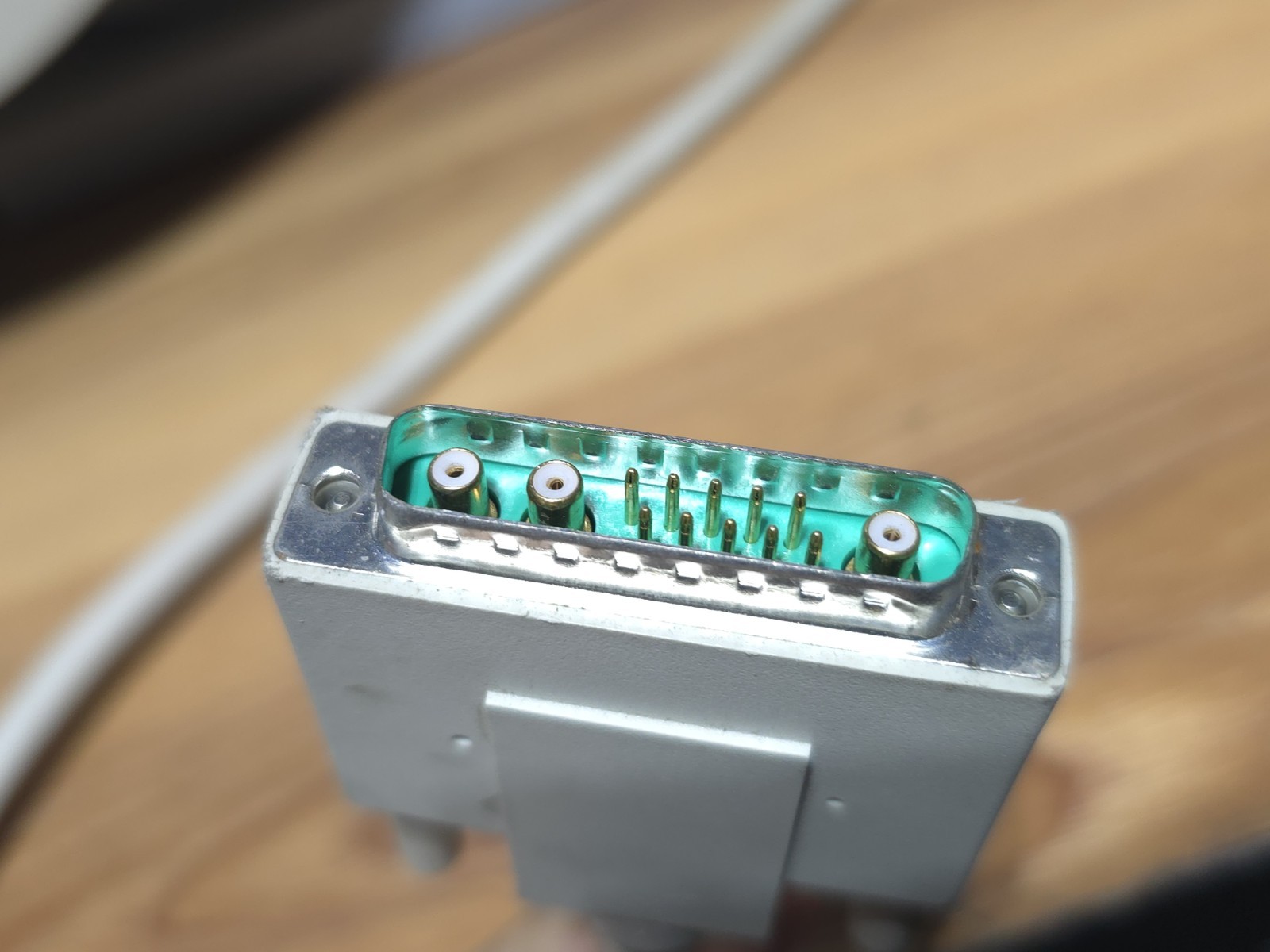

- Input:
- DB13W3 (needs a DB13W3-to-VGA adapter for VGA)
- Max Resolution:
- 1280x1024 (manufacturer spec)
- Horizontal Scan Range:
- 30–82 kHz
- Vertical Scan Range:
- 48–160 Hz
- Phosphor Trio Pitch:
- 0.31 mm
- Deflection:
- 90°
- Aspect Ratio:
- 4:3

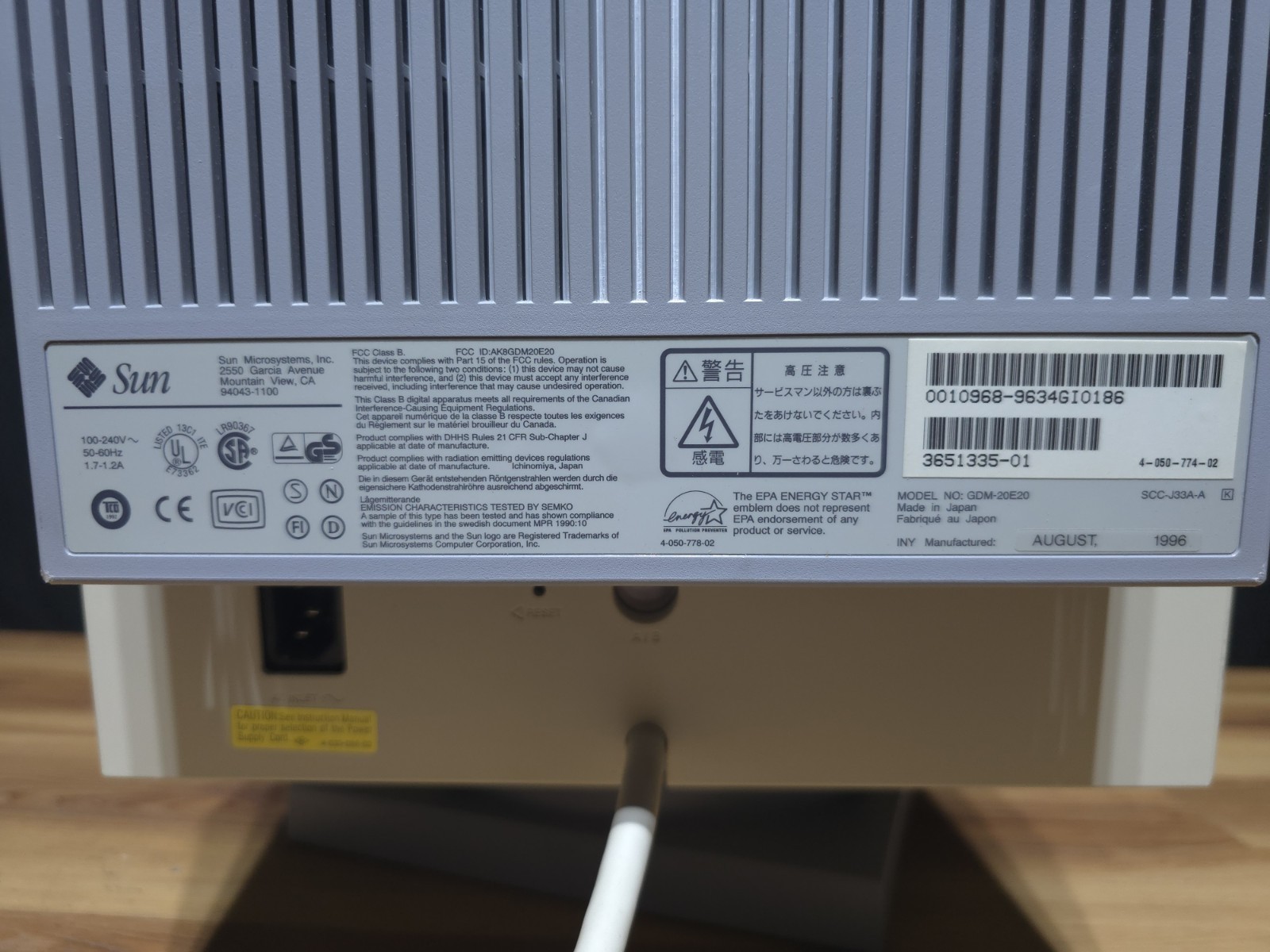

- Power:
- 100–240V AC, 50–60 Hz, 110W
- Country of Manufacture:
- Japan
- Dimensions:
- 18.75" W × 19.25" H × 20" D
- Weight:
- Approx. 68.4 lbs

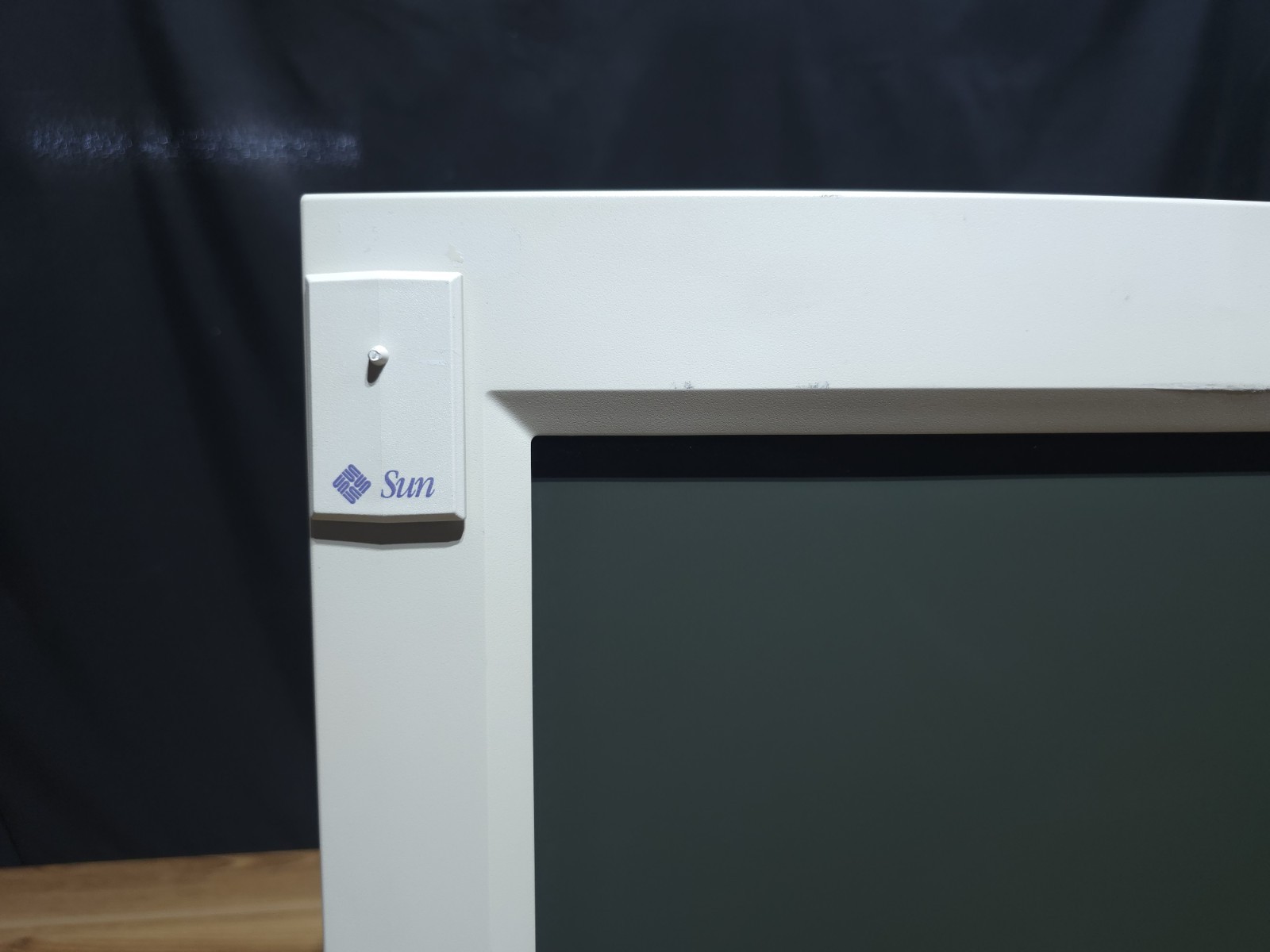

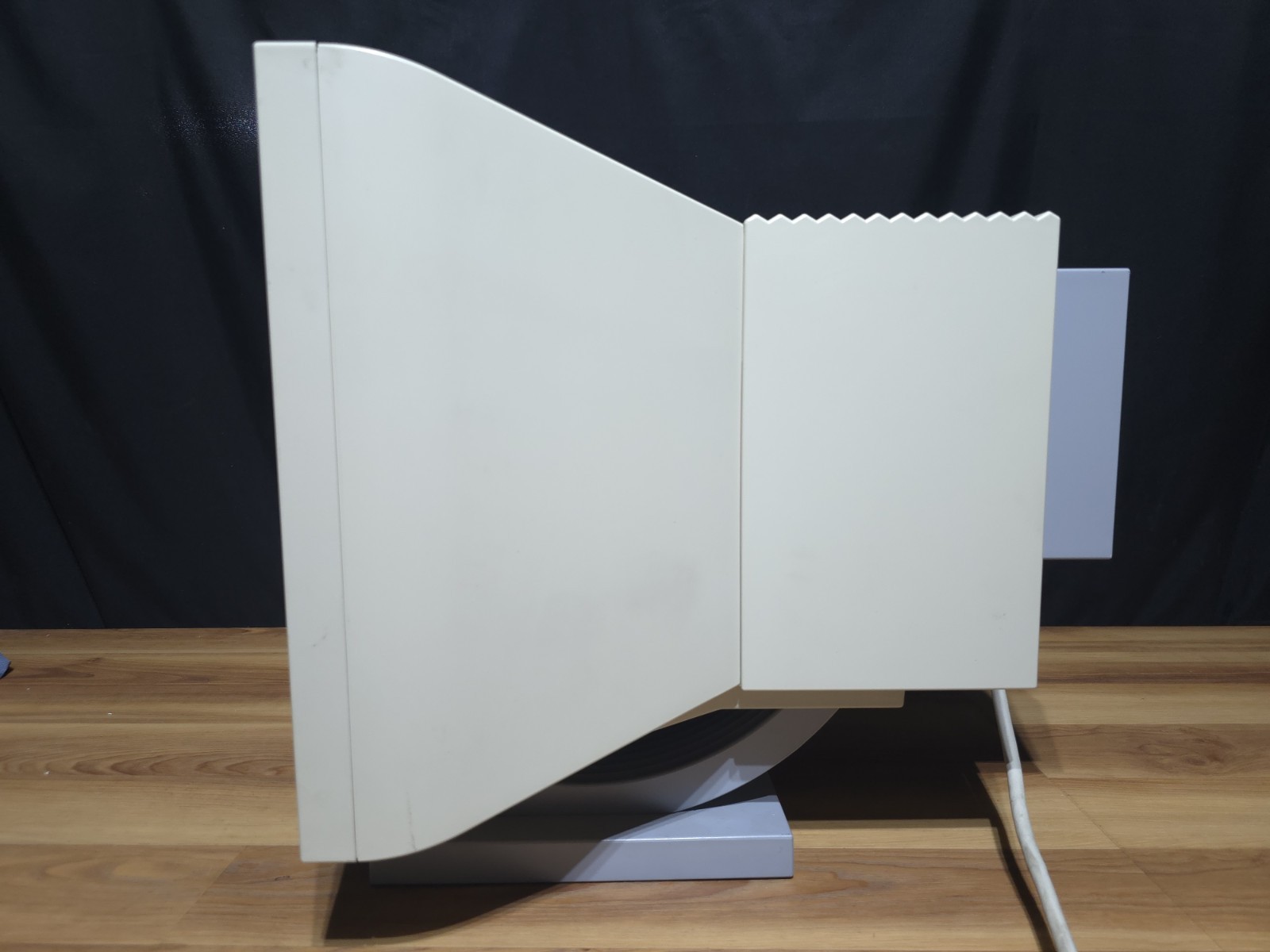

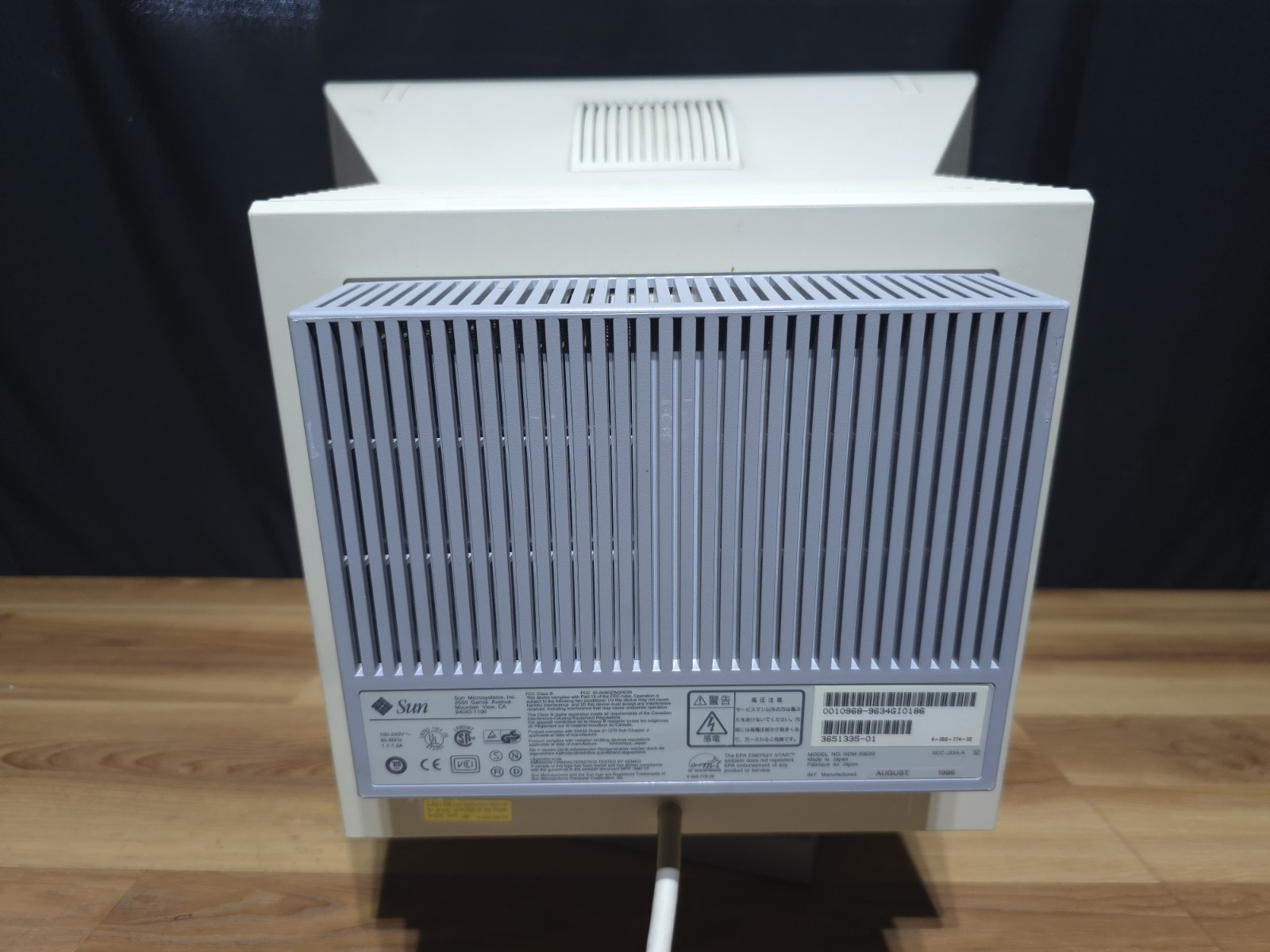

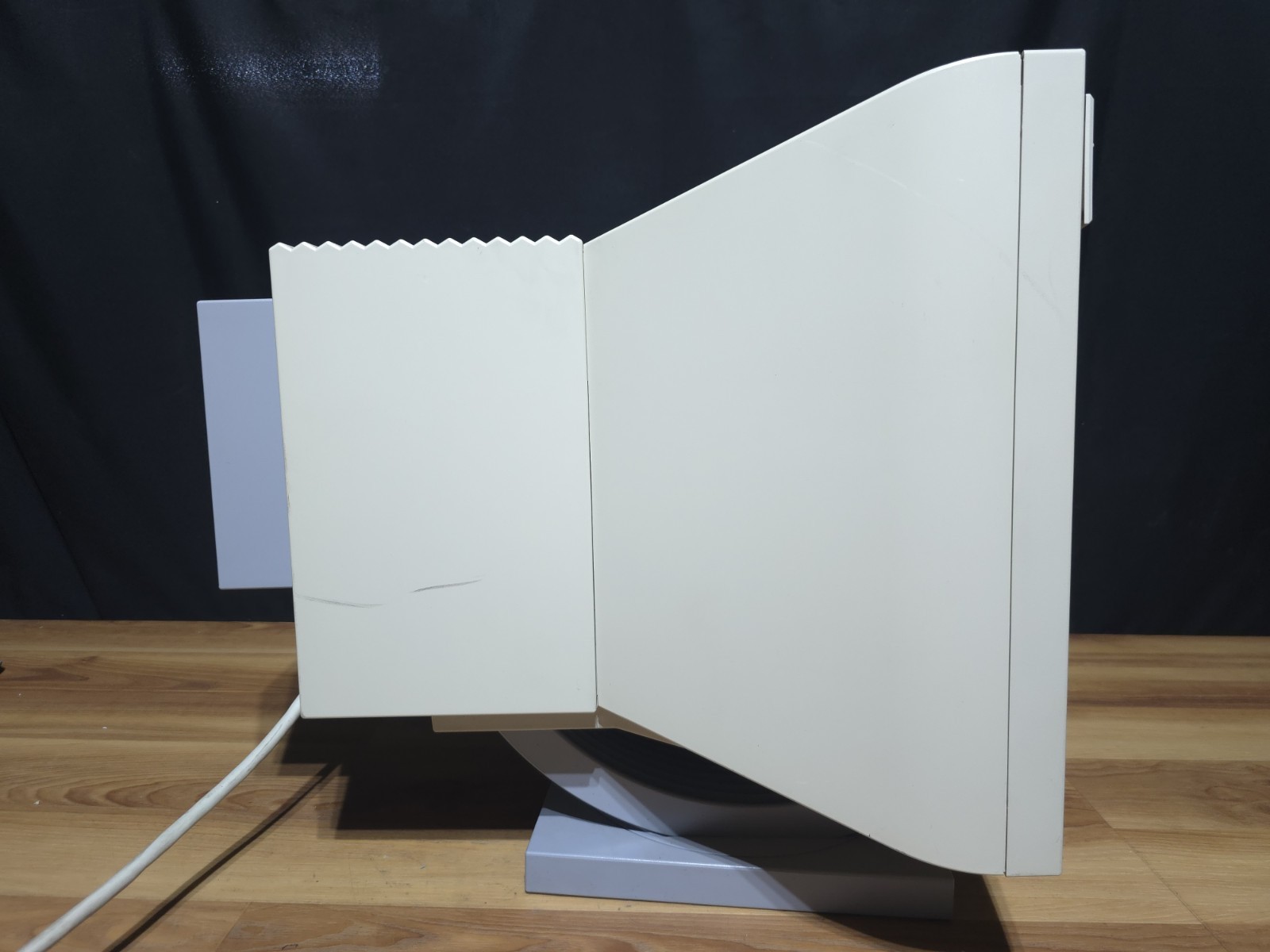

Condition

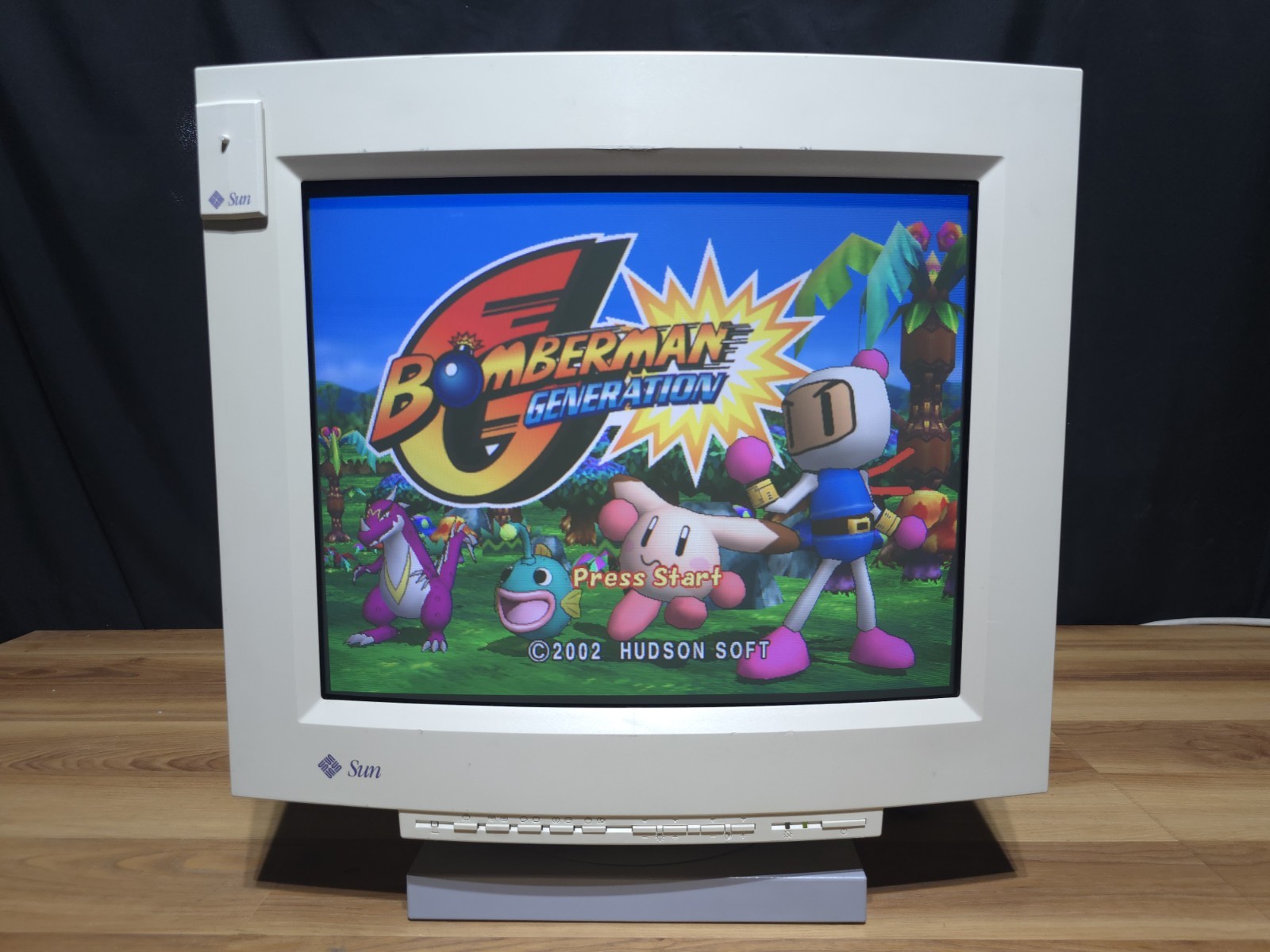

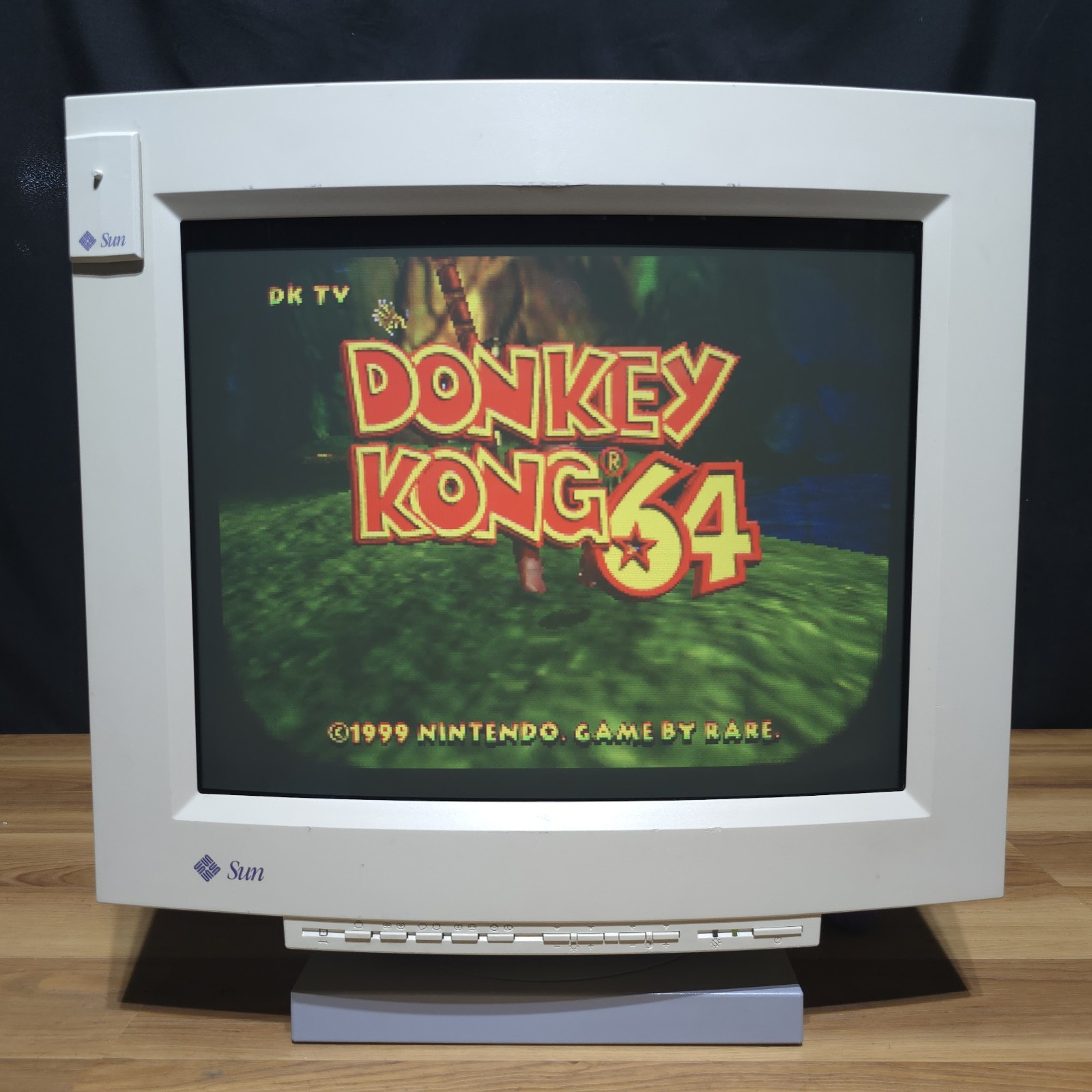

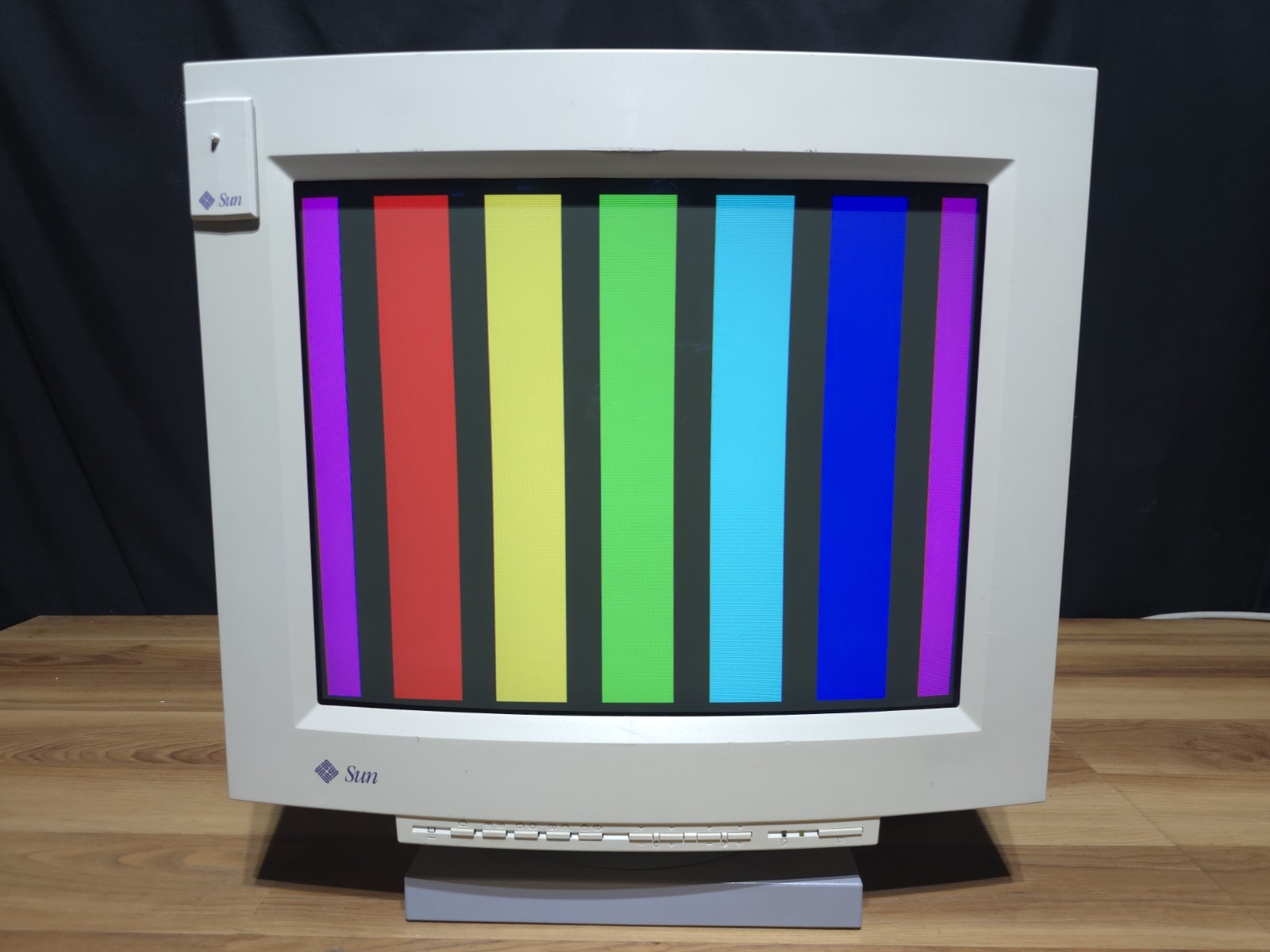

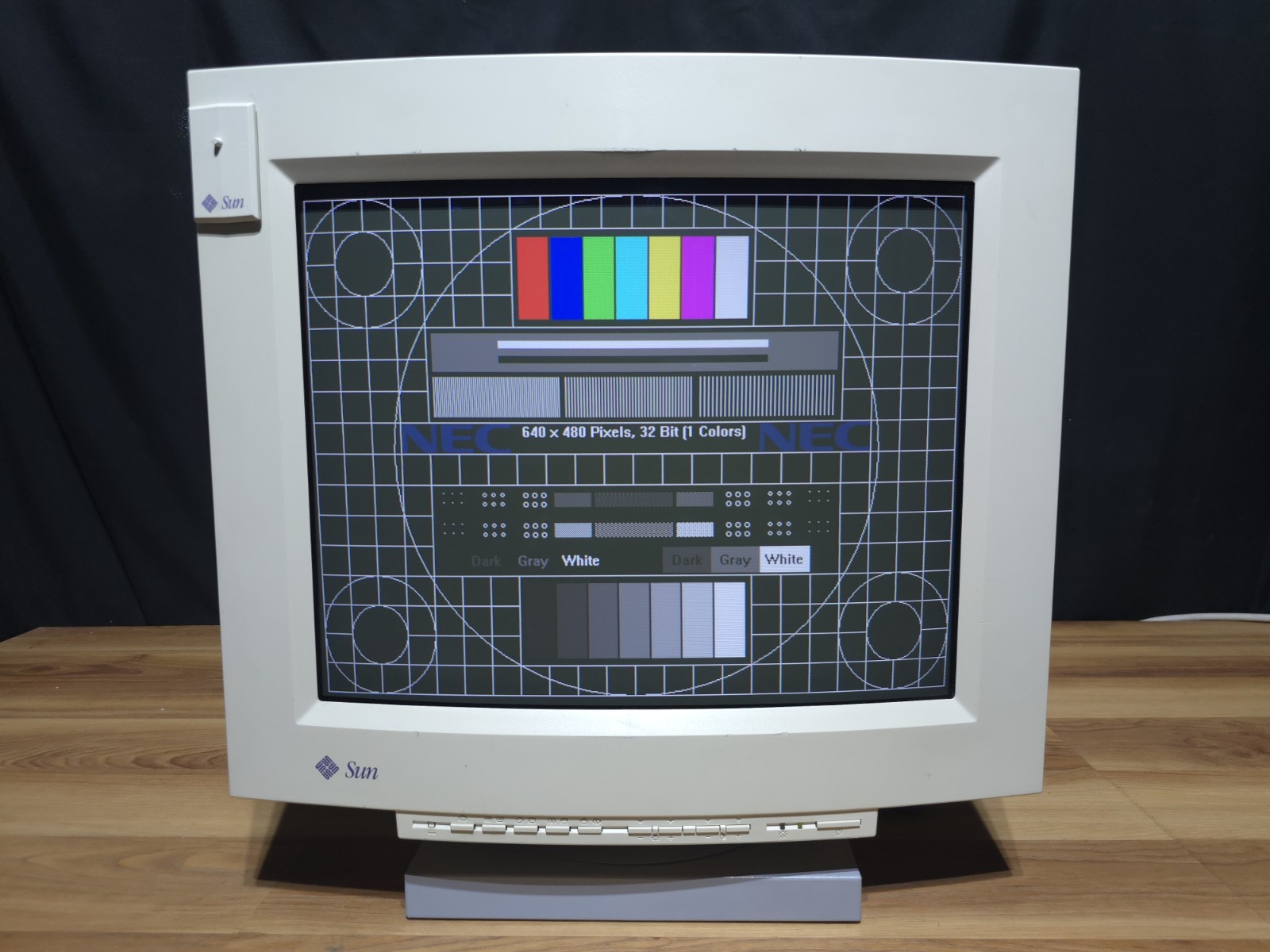

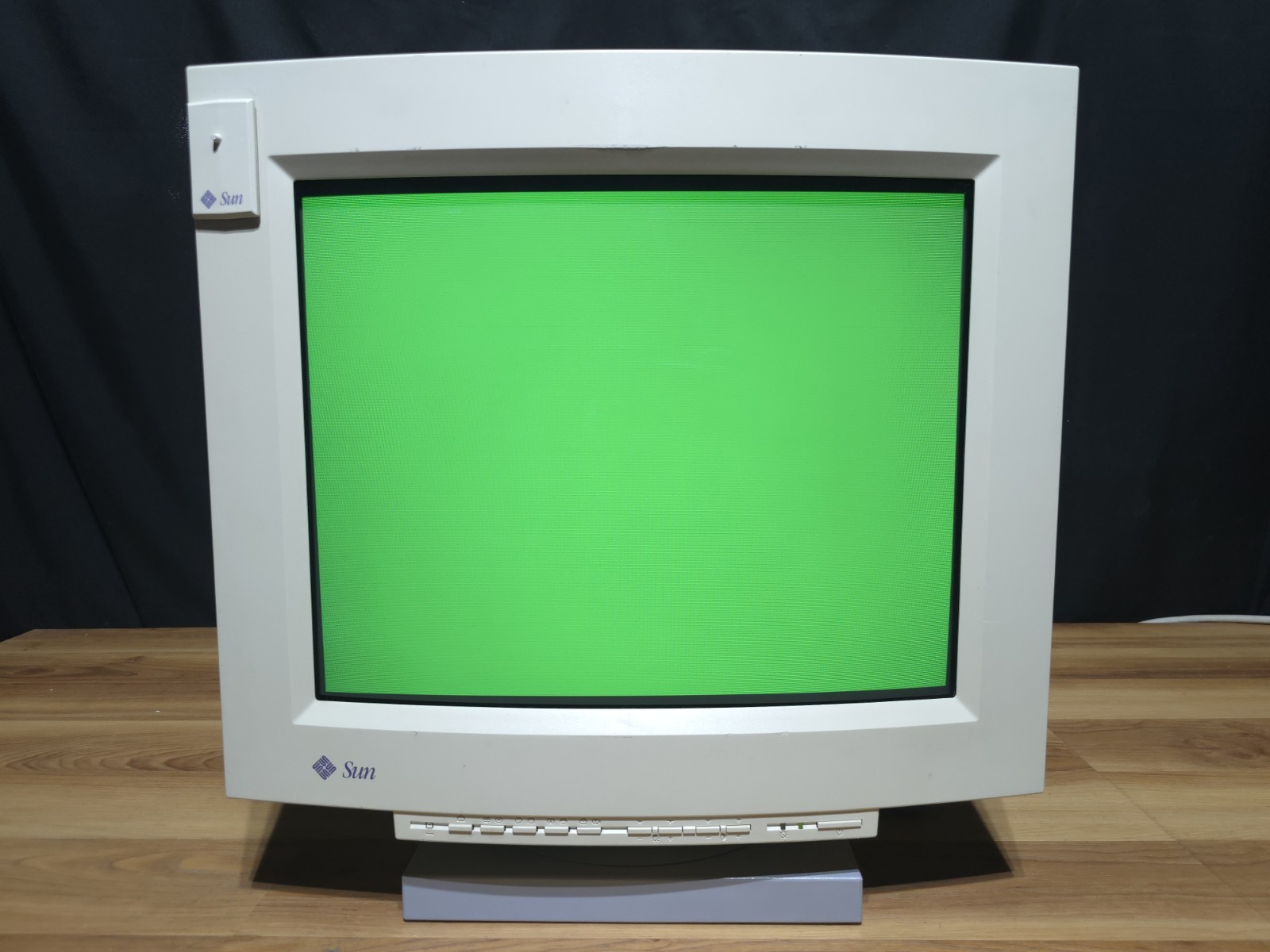

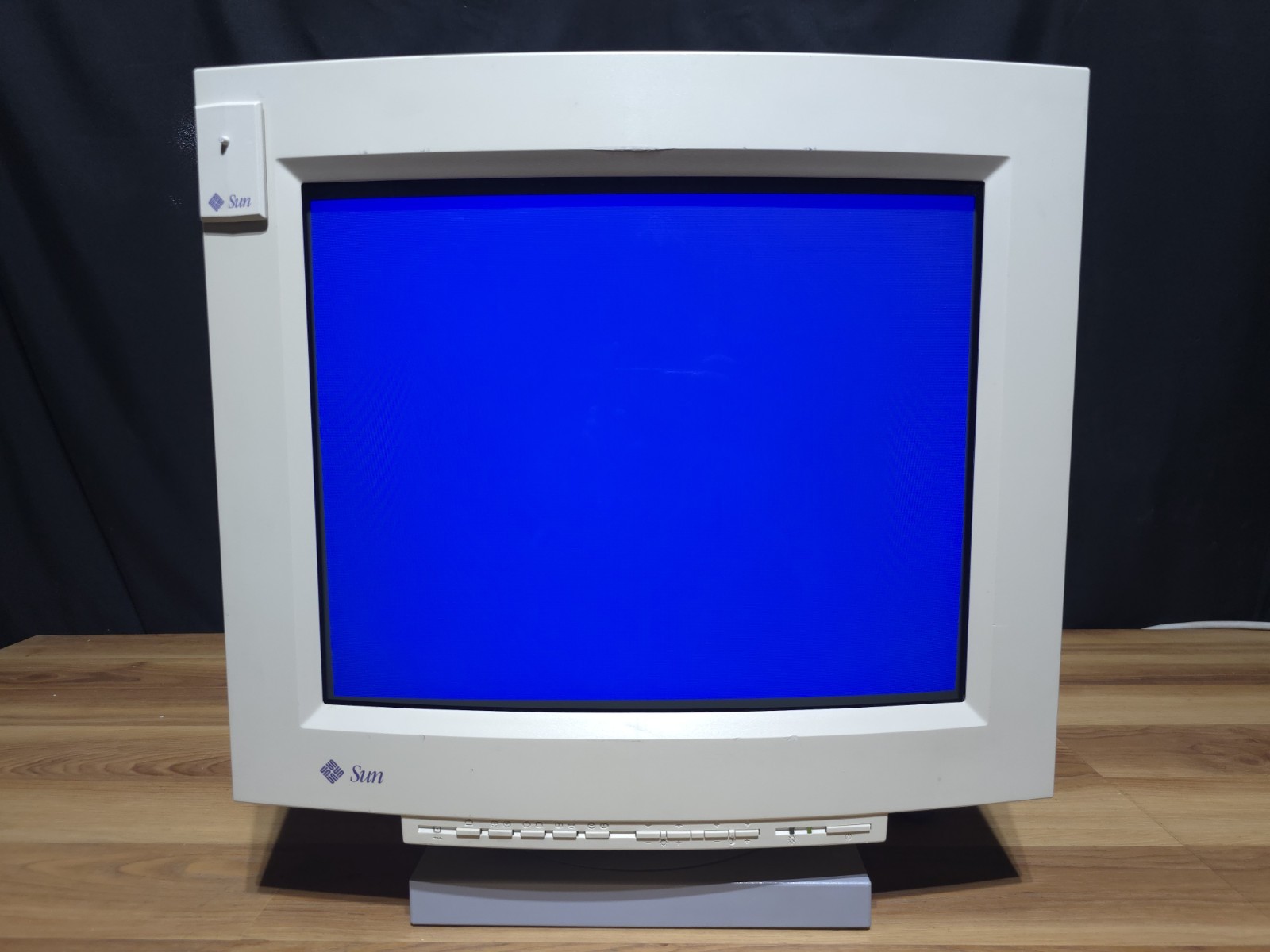

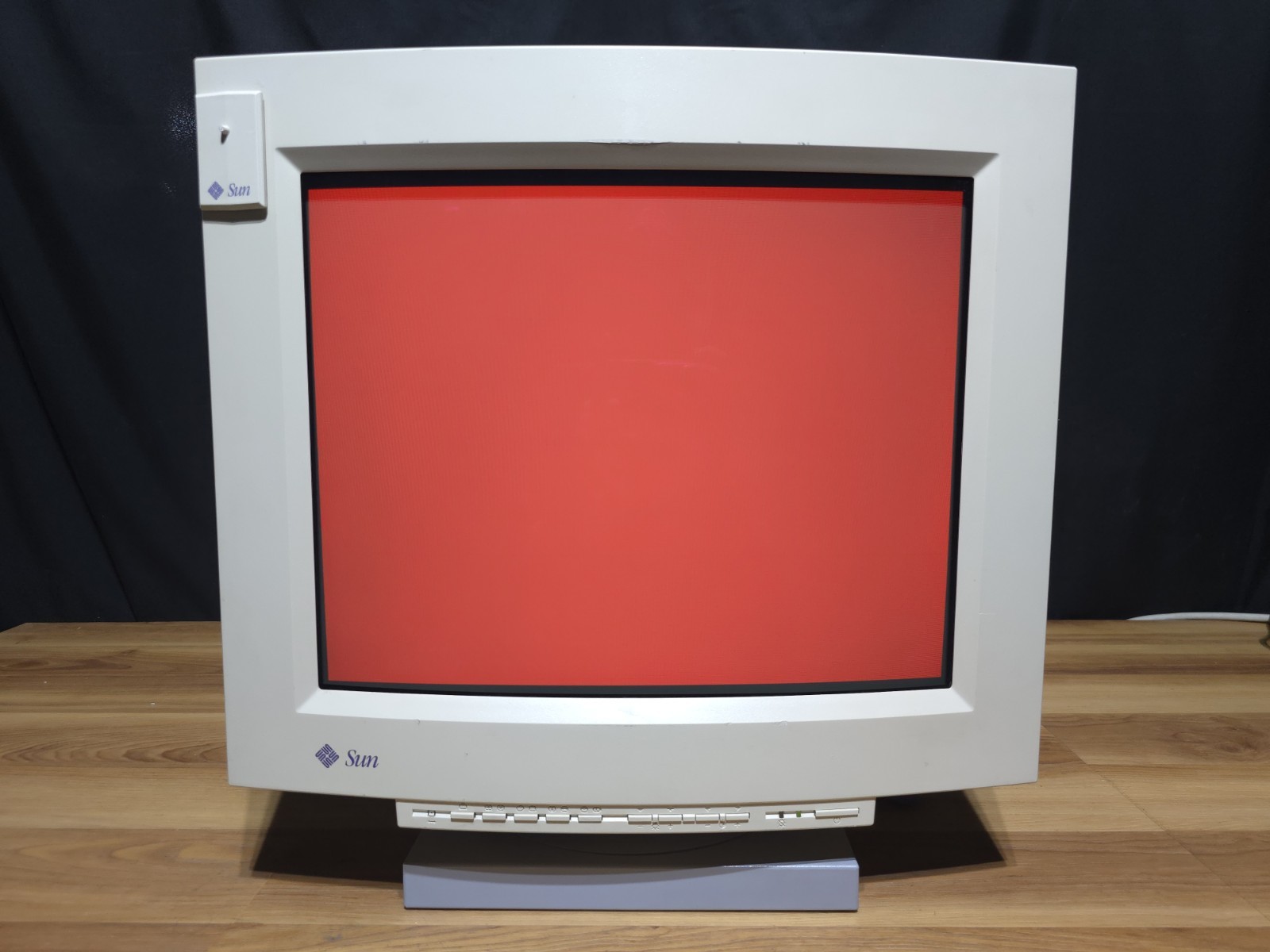

This unit may have scratches, scuffs or discoloration. This unit is listed as for parts/repair as there is discoloration/burn-in in the center of the tube and it's not as bright as it should be.
Included Items
- Sun GDM-20E20 CRT Monitor
- AC power cable
Shipping & Handling
This unit is available for local pickup only. 3rd-party courier services such as uShip and Craters & Freighters are welcome: complete your purchase first to receive the pickup details, and we'll give you plenty of time to arrange pickup.
Local pickup sales are final, including pickups by a 3rd-party courier. Please inspect the unit when you or your courier collect it.
Please Note
CRTs are vintage technology and are sold as-is with no additional warranty or guarantee. While we thoroughly test all units, minor imperfections or quirks may be present due to the age of the technology. Local pickup sales are final, including pickups by a 3rd-party courier. Please inspect the unit when you or your courier collect it. We'll gladly power it on and show it working. We're happy to answer your questions.
