CTX 19" PL9 1600x1200 VGA CRT Monitor
- Tested before listing
- 14-day returns; prepaid return label if it arrives damaged
- Expertly packed for FedEx
- Questions? contact@analogattic.tv
Description

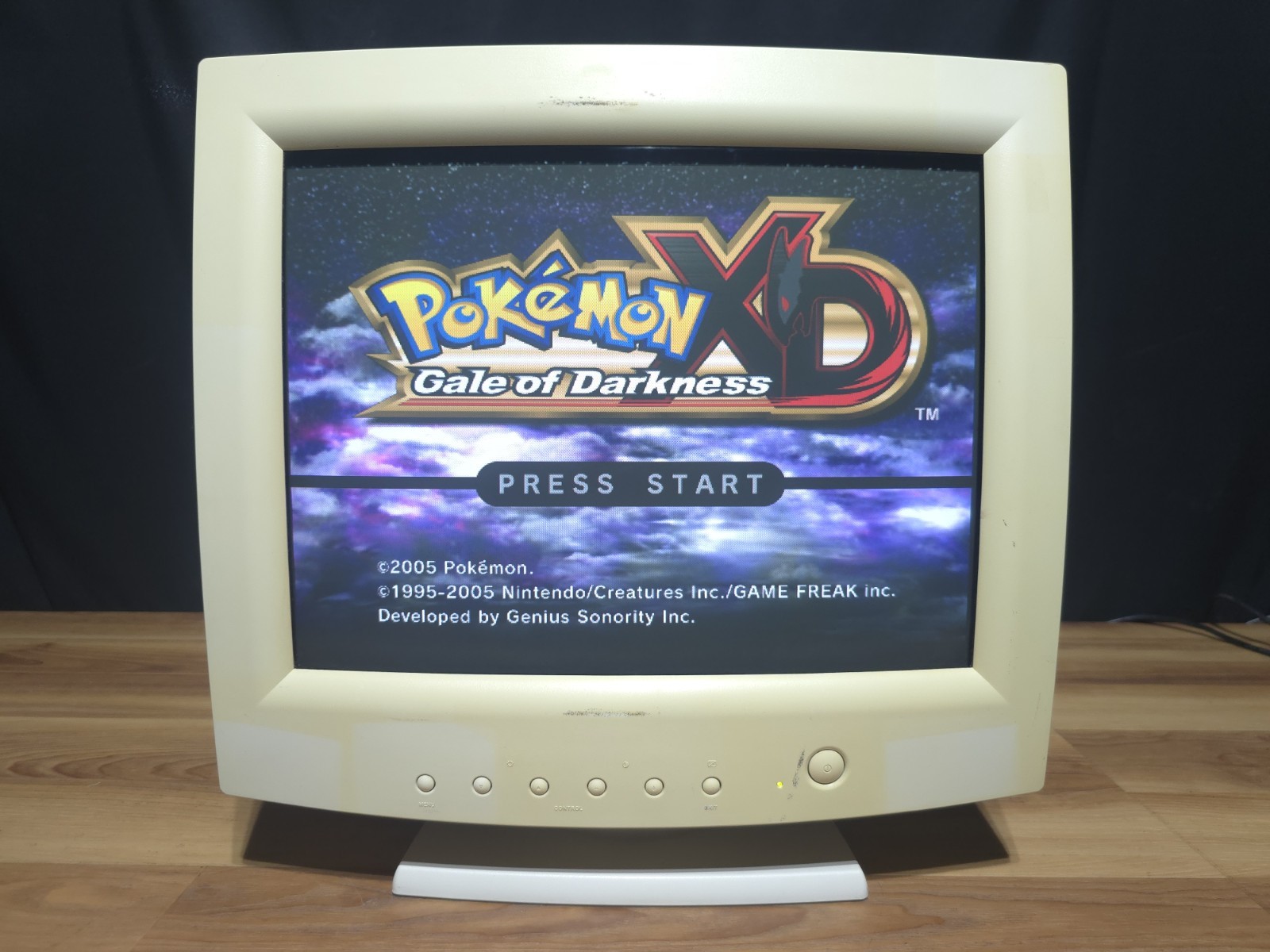

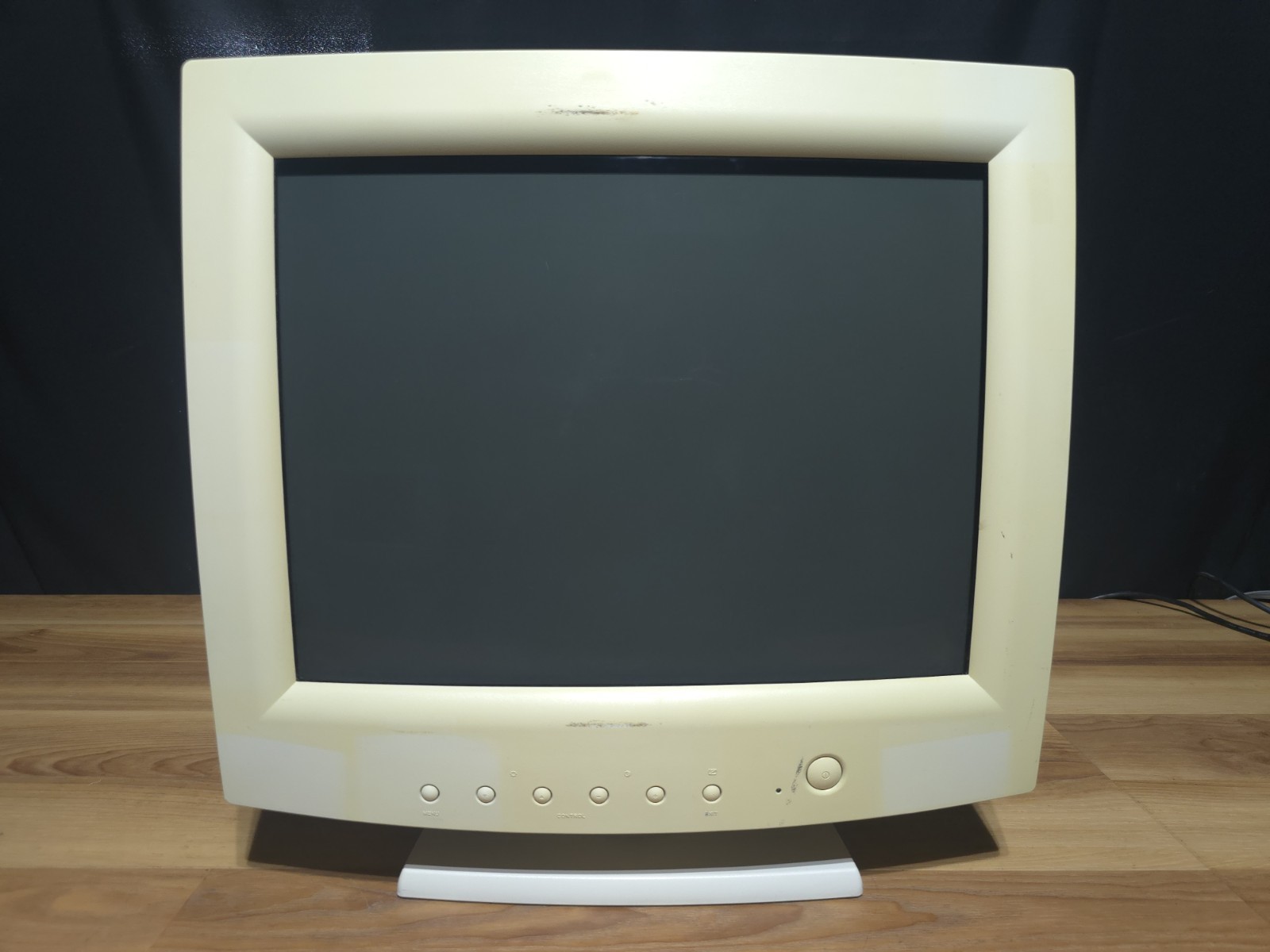

The CTX PL9 is a 19-inch VGA CRT monitor with an 18-inch viewable screen, flat-square tube, and fine 0.26mm Invar shadow mask. Supporting up to 1600×1200 at 75Hz and 1280×1024 at 85Hz, it offers a strong range of resolutions and refresh rates for retro PC gaming and classic high-resolution desktop use.
Specifications
- Brand:
- CTX
- Model:
- PL9
- Screen Size:
- 19" (18" viewable)
- Maximum Resolution:
- 1600×1200 @ 75Hz
- Recommended Resolution:
- 1280×1024 @ 85Hz
- Mask Type:
- Invar Shadow Mask
- Dot Pitch:
- 0.26 mm
- Input:
- VGA / D-Sub 15
- VGA Cable:
- Attached
- Horizontal Scan Range:
- 30–95 kHz
- Vertical Scan Range:
- 50–160 Hz
- Dot Rate:
- 202.5 MHz
- Plug & Play:
- DDC1/2B
- Preset Modes:
- 12
- User Modes:
- 10
- Color Temperatures:
- 9300K, 7500K, 6500K, 5000K
- 640×480:
- Up to 160Hz
- 800×600:
- Up to 150Hz
- 1024×768:
- Up to 117Hz
- 1280×1024:
- Up to 85Hz
- 1600×1200:
- Up to 75Hz
- Controls:
- H/V Position & Size, Brightness, Contrast, Pincushion, Trapezoid, Pin Balance, Parallelogram, Rotation, Color, Moiré
- Additional Features:
- Multilingual OSD, Manual Degauss, OSD Position, Input Frequency Display, Out-of-Range Alarm, Self-Diagnosis, Key Lock
- Power Management:
- VESA DPMS / Energy Star, 4-Stage, <8W
- Dimensions:
- 18.1" W × 17.9" H × 18" D (460 × 453.5 × 456 mm)
- Weight:
- 43 lbs (19.5 kg)
Condition

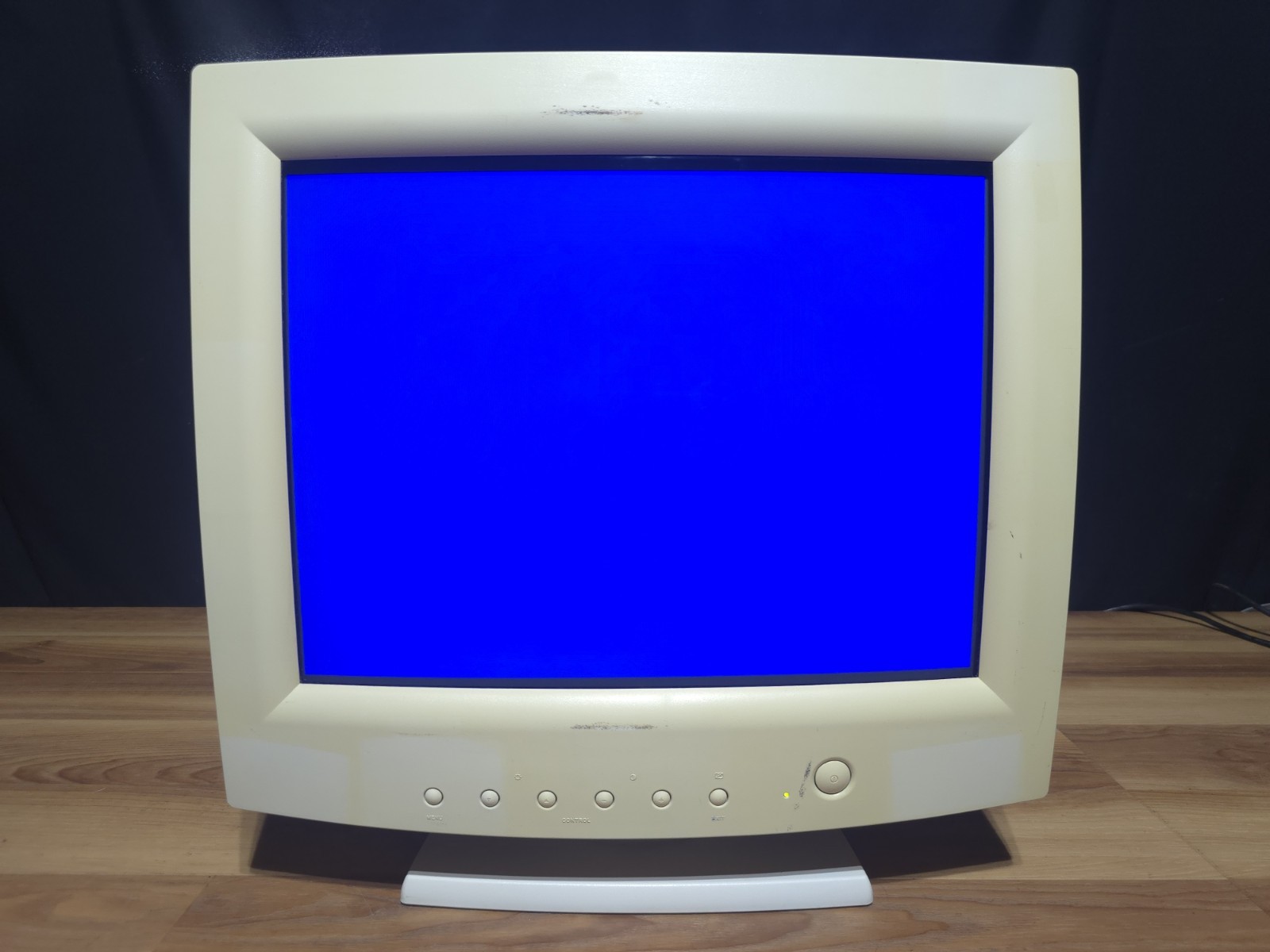

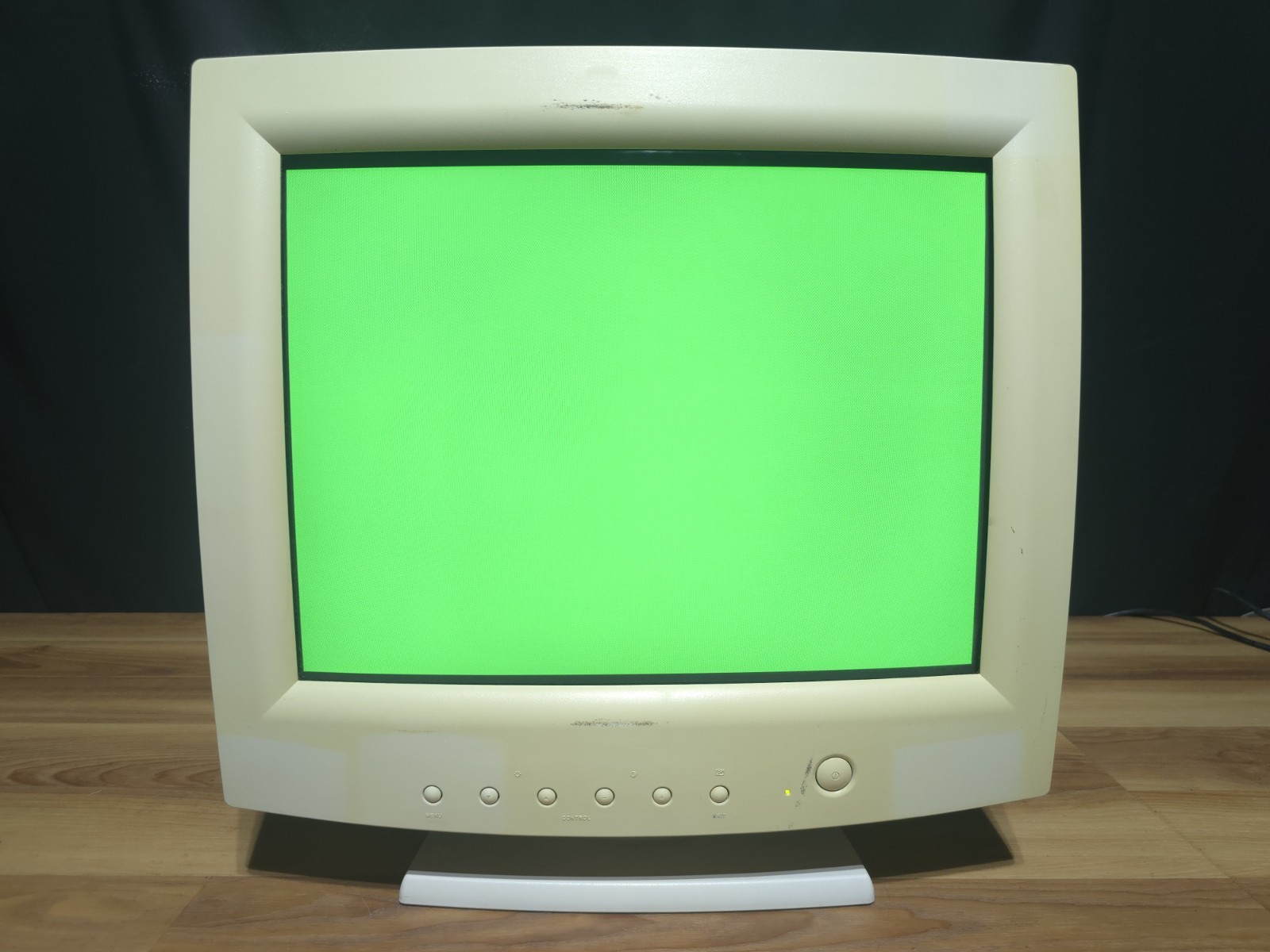

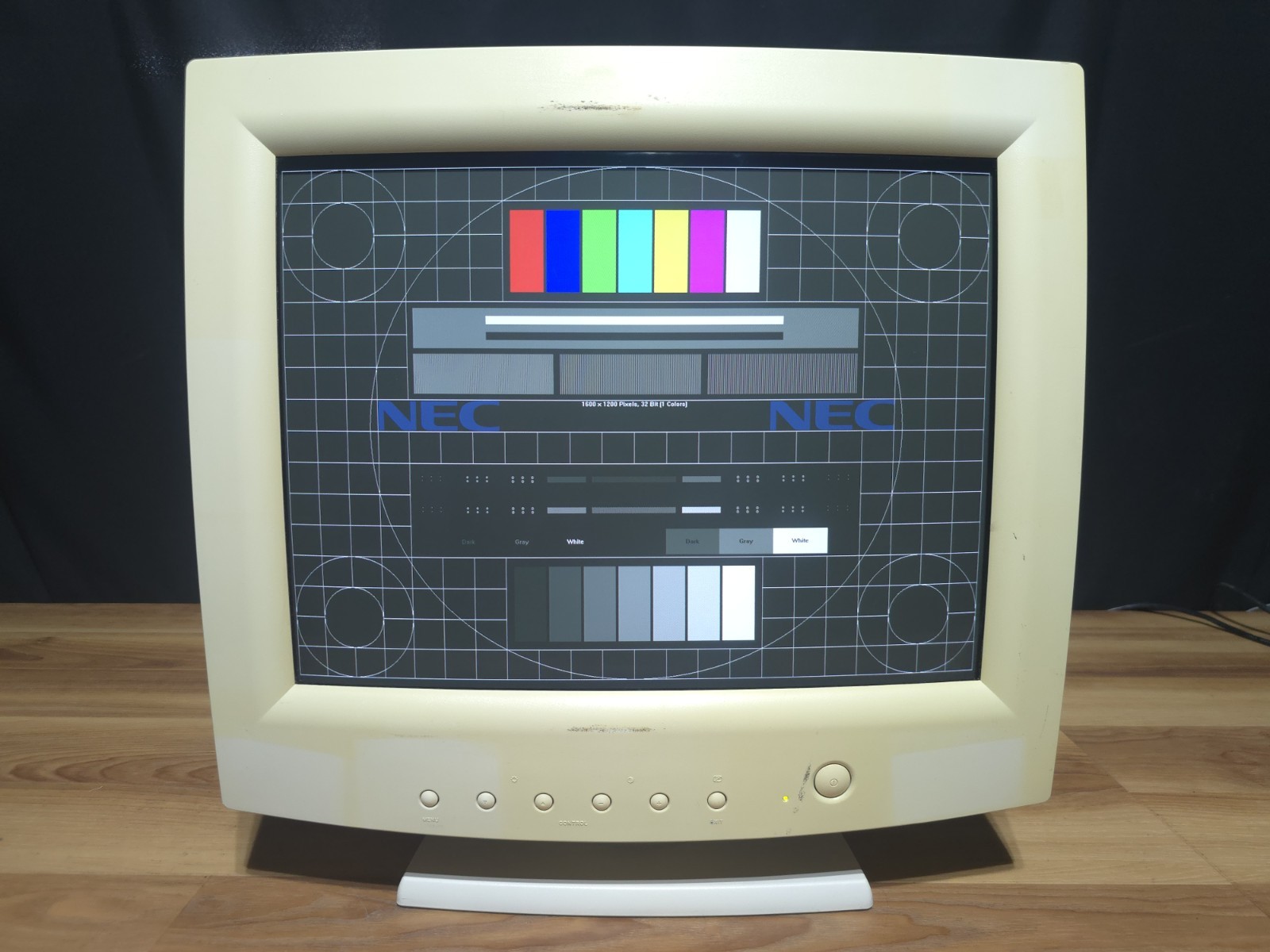

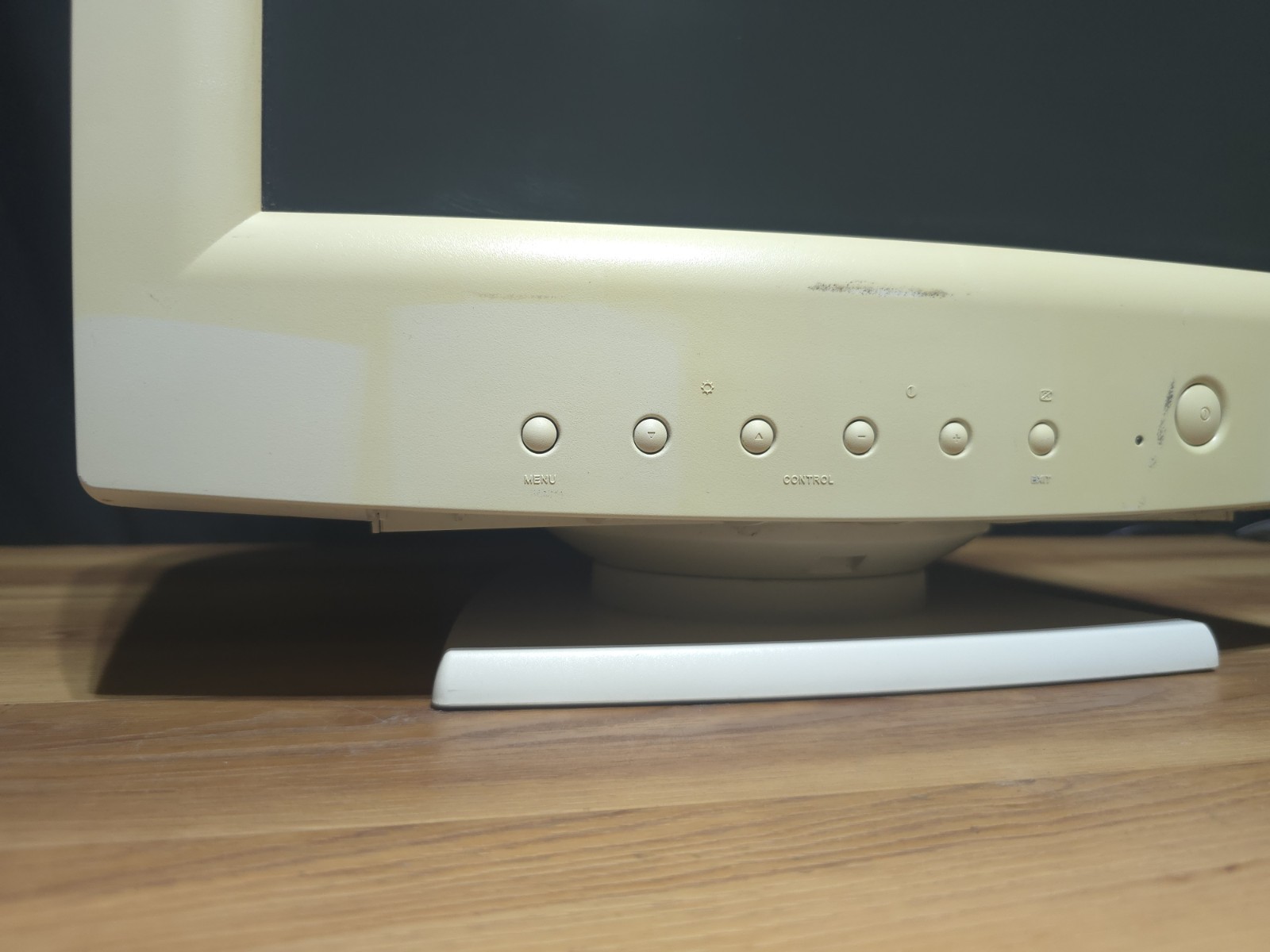

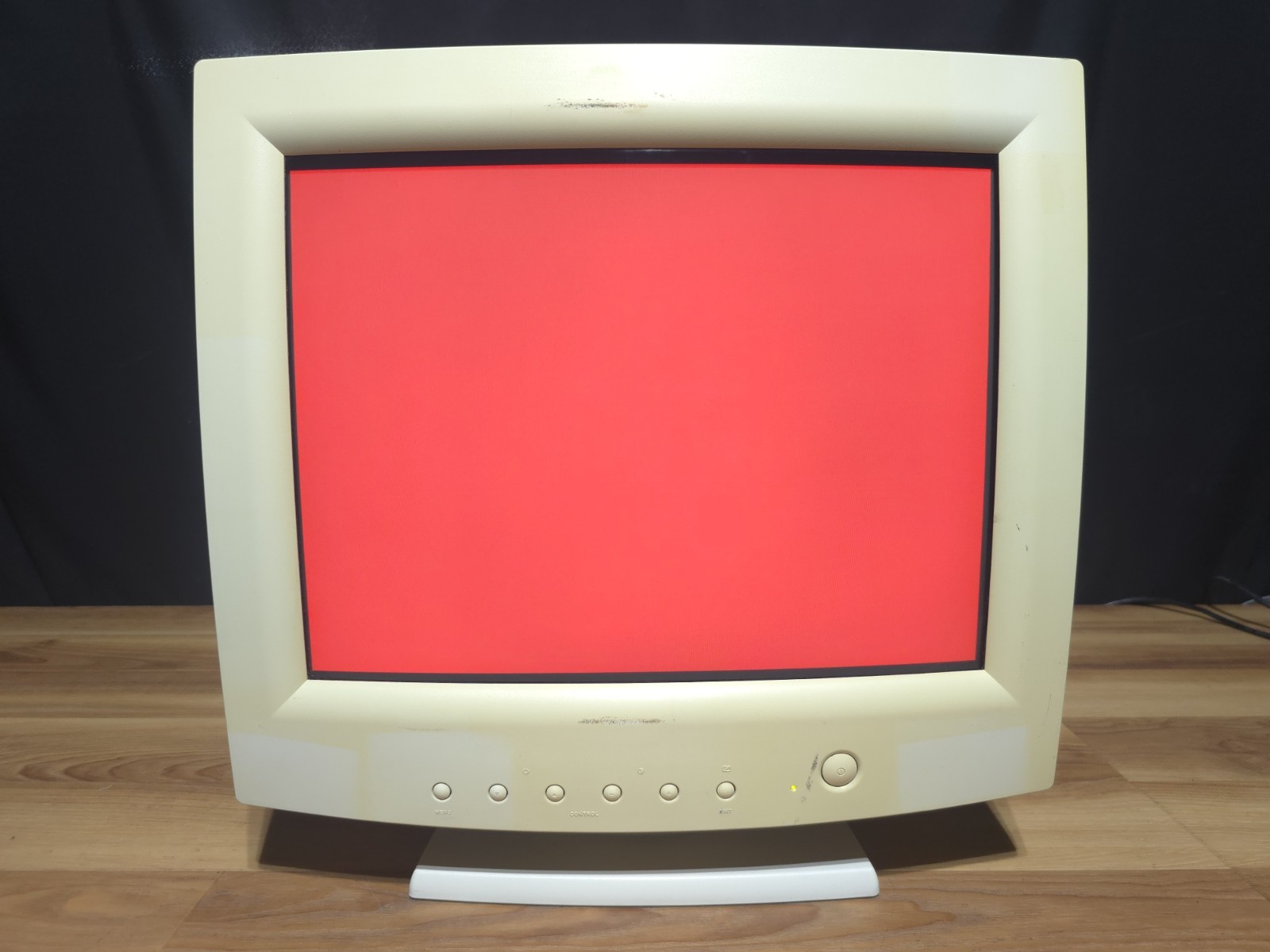

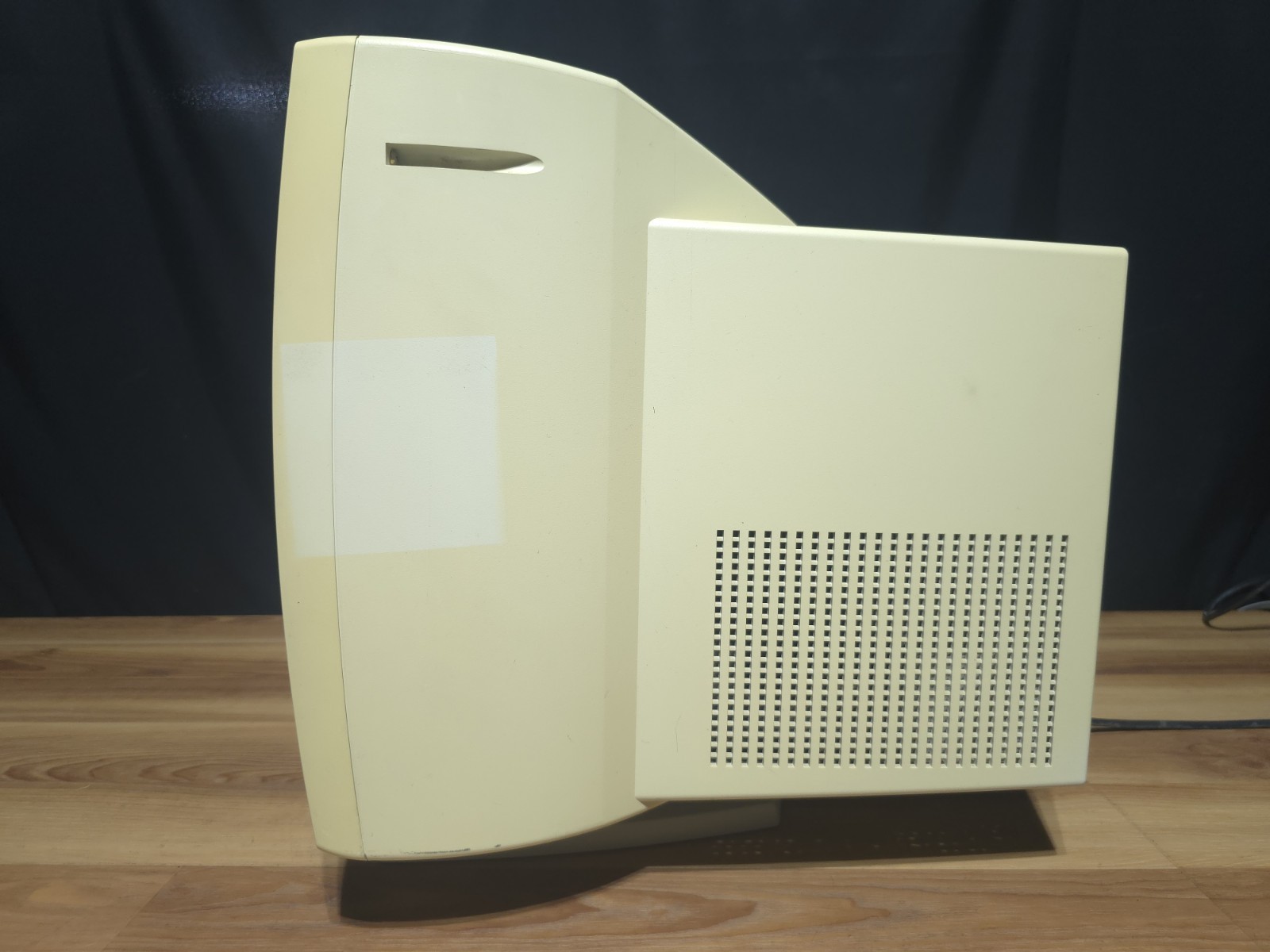

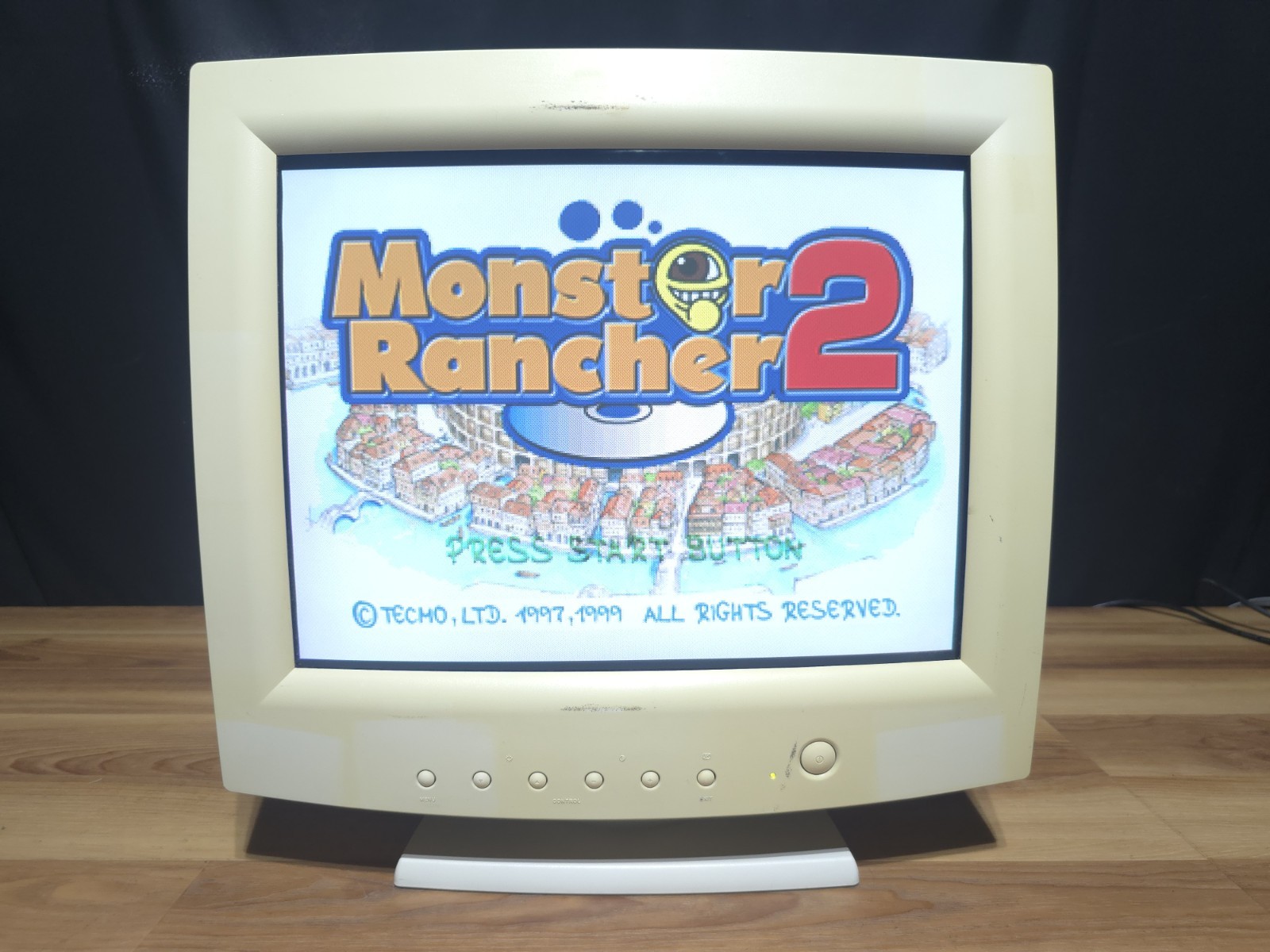

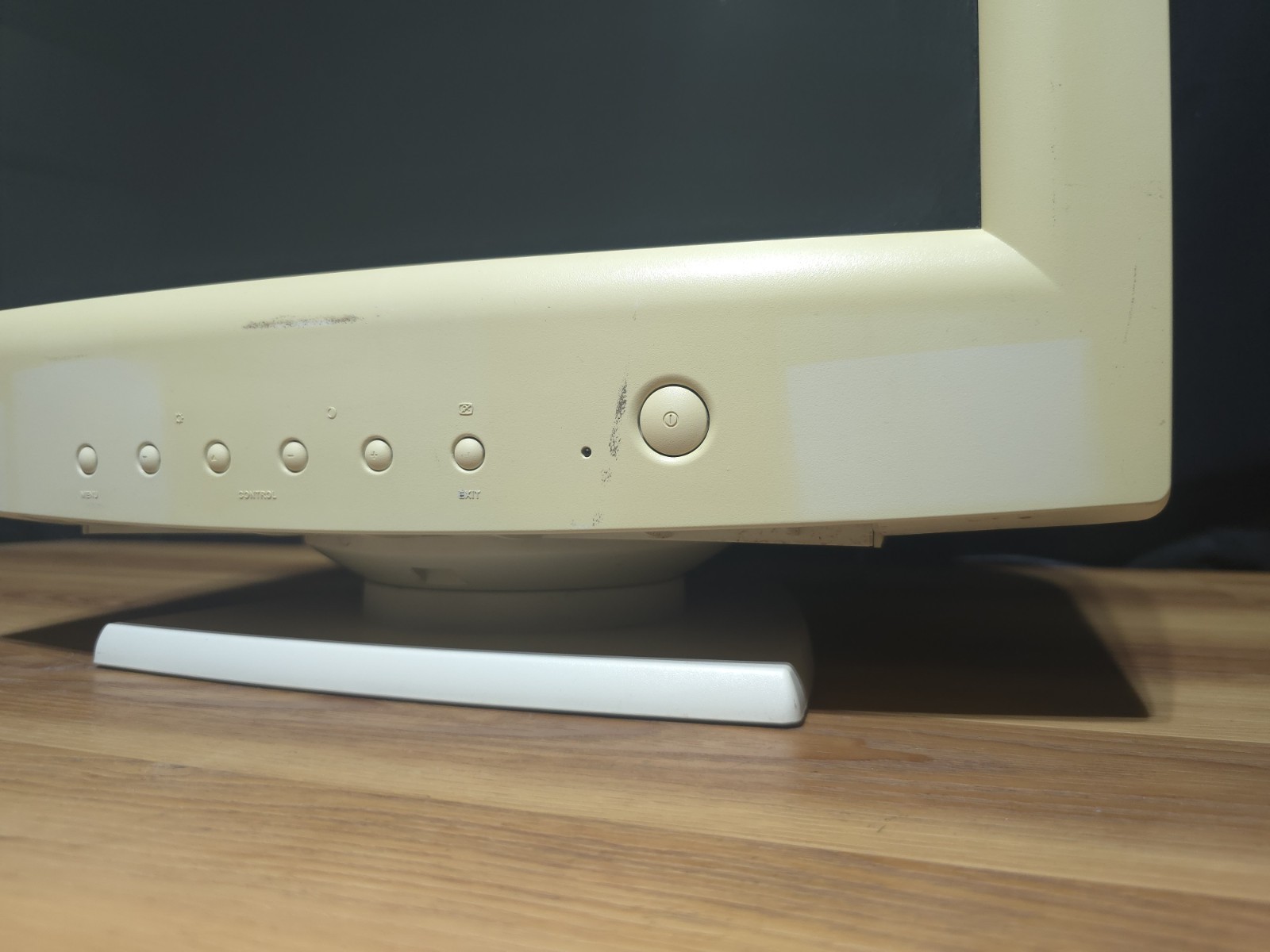

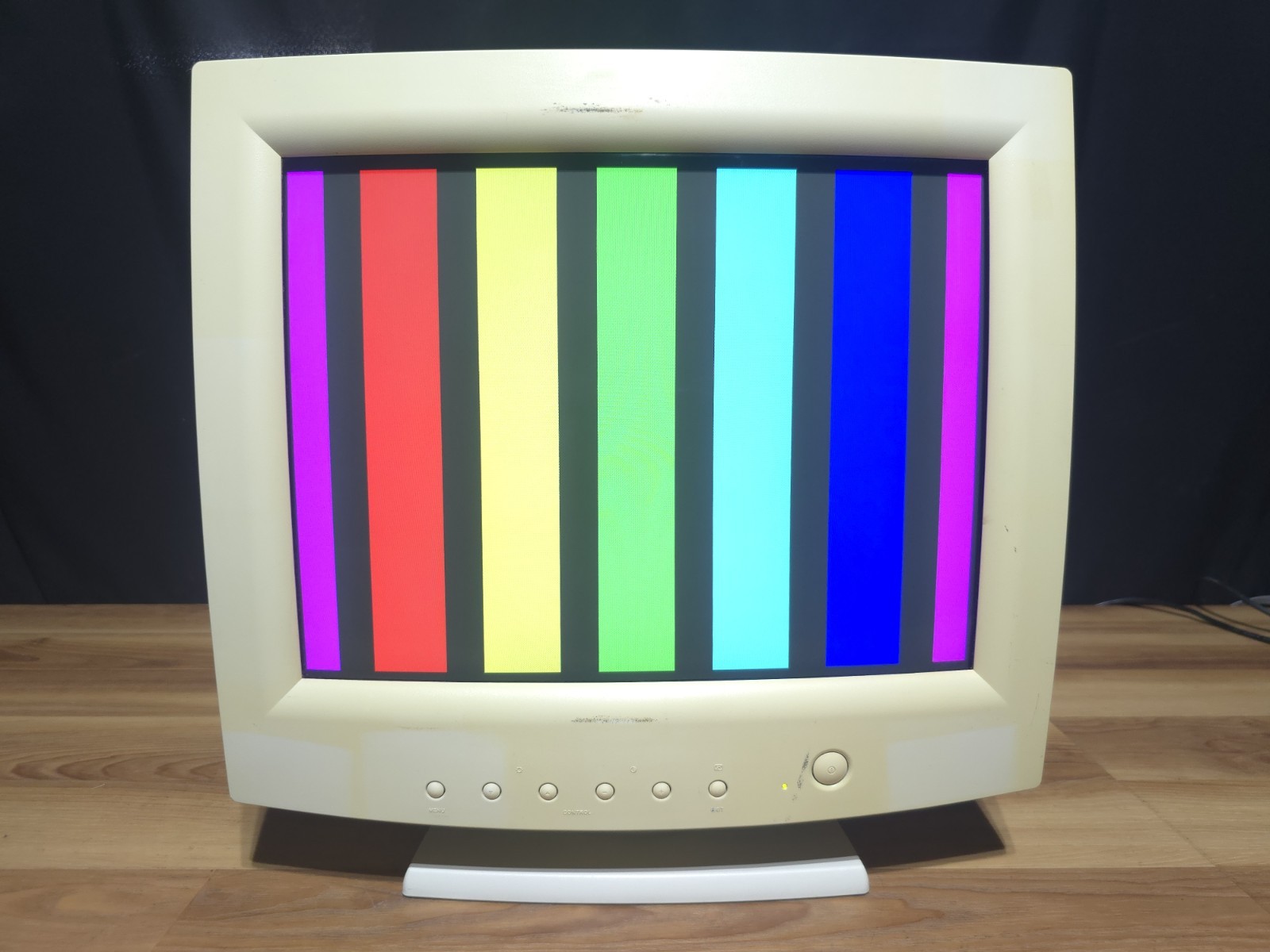

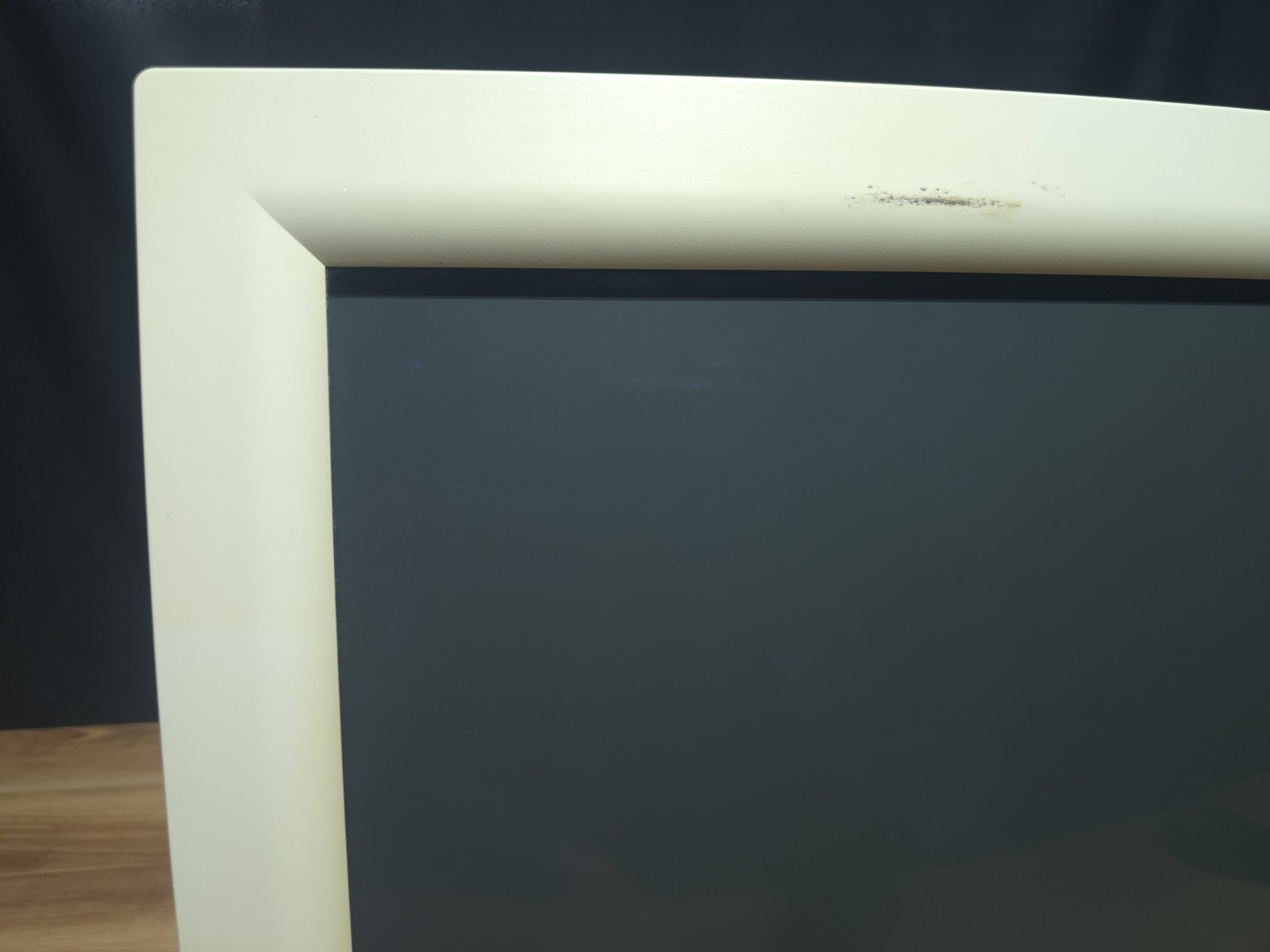

This unit may have scratches, scuffs or discoloration. All buttons are functioning normally. The VGA input is working and the tube is bright and healthy with no burn-in.
Included Items
- CTX PL9 CRT Monitor
- AC power cable
Shipping & Handling
Rest assured, your monitor will be professionally packaged. We have an extensive history shipping CRTs of all sizes around the world. While there is always a risk shipping vintage technology like this, we do everything we can to ensure a safe shipment. All units are tested and photographed before packaging.
Shipped via FedEx Ground or Home Delivery. Ships within 2 business days.
Ships to the contiguous US only (no Alaska, Hawaii, US territories, or APO/FPO).
Please Note
CRTs are vintage technology and are sold as-is with no additional warranty or guarantee. While we thoroughly test all units, minor imperfections or quirks may be present due to the age of the technology. Returns are accepted within 14 days of delivery. If your unit arrives damaged, report it here and we'll send a prepaid return label and refund you once it's back. Returns are inspected internally and externally for integrity. We're happy to answer your questions.
